Die cutting Gap Ejection Rubber Strip
S200
Hardness: 85 degree
Size: 1MM--5MM*500MM
Size: 1MM--5MM*500MM
Quantity
Shenhua Die Cutting Gap Ejection Rubber

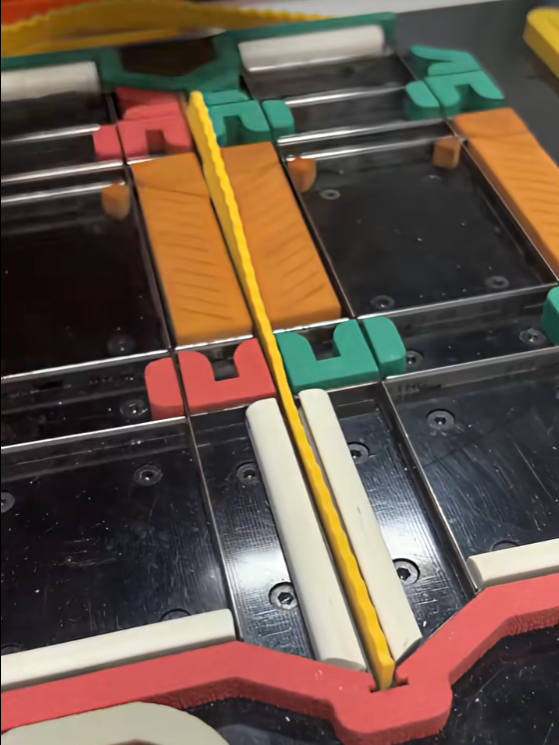

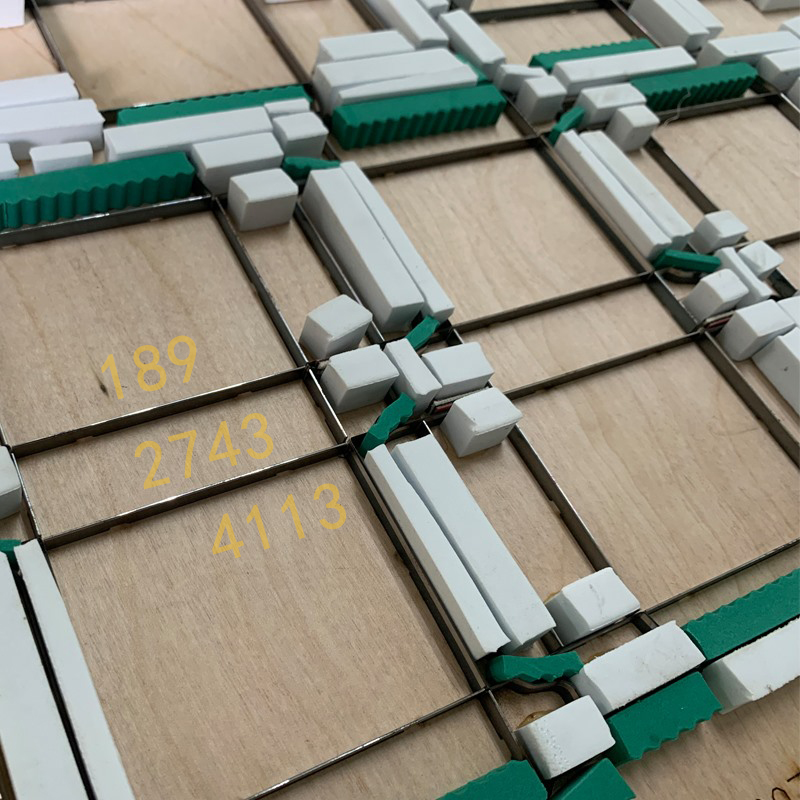

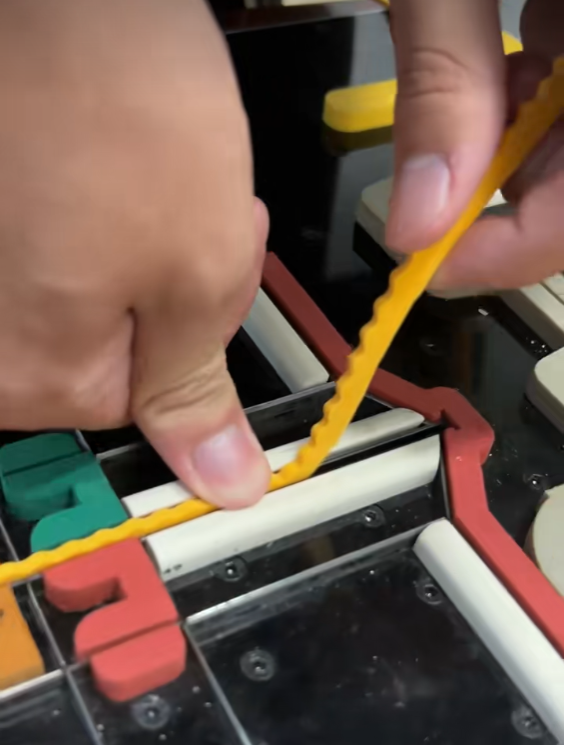

Shenhua die cutting gap ejection rubber strip is a special consumable designed to solve the problem of narrow gap waste jamming in die cutting. Made of high-hardness and high-elasticity rubber material with precision extrusion process, it is specially used to fill the narrow gaps between adjacent die blades. It can quickly rebound and eject small waste during die cutting, effectively preventing downtime for waste cleaning, significantly improving high-speed die cutting production efficiency, and is an indispensable precision accessory for die board manufacturing in the printing and packaging industry.
Why choose the Shenhua Die Cutting Gap Ejection Rubber?
Completely Solve Narrow Gap Jamming Problem
Specially designed for various narrow die gaps, perfectly covering the narrow spaces that ordinary ejection rubber cannot reach, fundamentally solving the downtime problem caused by narrow gap waste jamming.
High Hardness and High Rebound Formula
Adopts industry-specific formula, maintaining strong resilience even in narrow spaces, ensuring every small waste piece is ejected smoothly without residue.
Strong Fabric-Backed Adhesive
Equipped with high-strength fabric-based double-sided adhesive that adheres firmly without falling off, and will not shift even during high-speed die cutting operations.
Support Special Customization
We can customize narrow gap ejection rubber strips with special specifications according to customer requirements to meet various special die cutting process needs.
FAQ About Die Cutting Gap Ejection Rubber
Q1: What is the difference between gap ejection rubber and ordinary ejection rubber? Can they replace each other?
A: They have completely different functions and installation positions, and cannot replace each other. Ordinary ejection rubber is pasted on both sides of a single die blade to eject large-area materials; die cutting gap ejection rubber is filled in the gap between two die blades to specifically eject small waste in narrow gaps. Without gap ejection rubber strips, jamming problems will inevitably occur in narrow gap areas.
Q2: How to choose the correct specification of gap ejection rubber strip?
A: The most critical principle is to choose a rubber strip slightly smaller than the die gap width. If the die gap is uneven, choose according to the width of the narrowest part. Excessive thickness will squeeze the blade and cause deformation, while insufficient thickness cannot effectively eject waste.
Q3: Can you provide samples for testing?
A: Yes, we can provide free samples of various specifications ofnarrow gap ejection rubber strips for your testing. You only need to pay a small shipping fee. If you need samples of special specifications, please contact our sales team.
Q4: What are the delivery time and shipping methods?
A: We have a large stock of all regular specification gap ejection rubber strips. Orders are shipped quickly after placement. For domestic transportation, we default to mainstream express and logistics. For international transportation, we can provide various international express services as well as sea and air freight services.
